Uni- and bidirectional three-phase digital converters

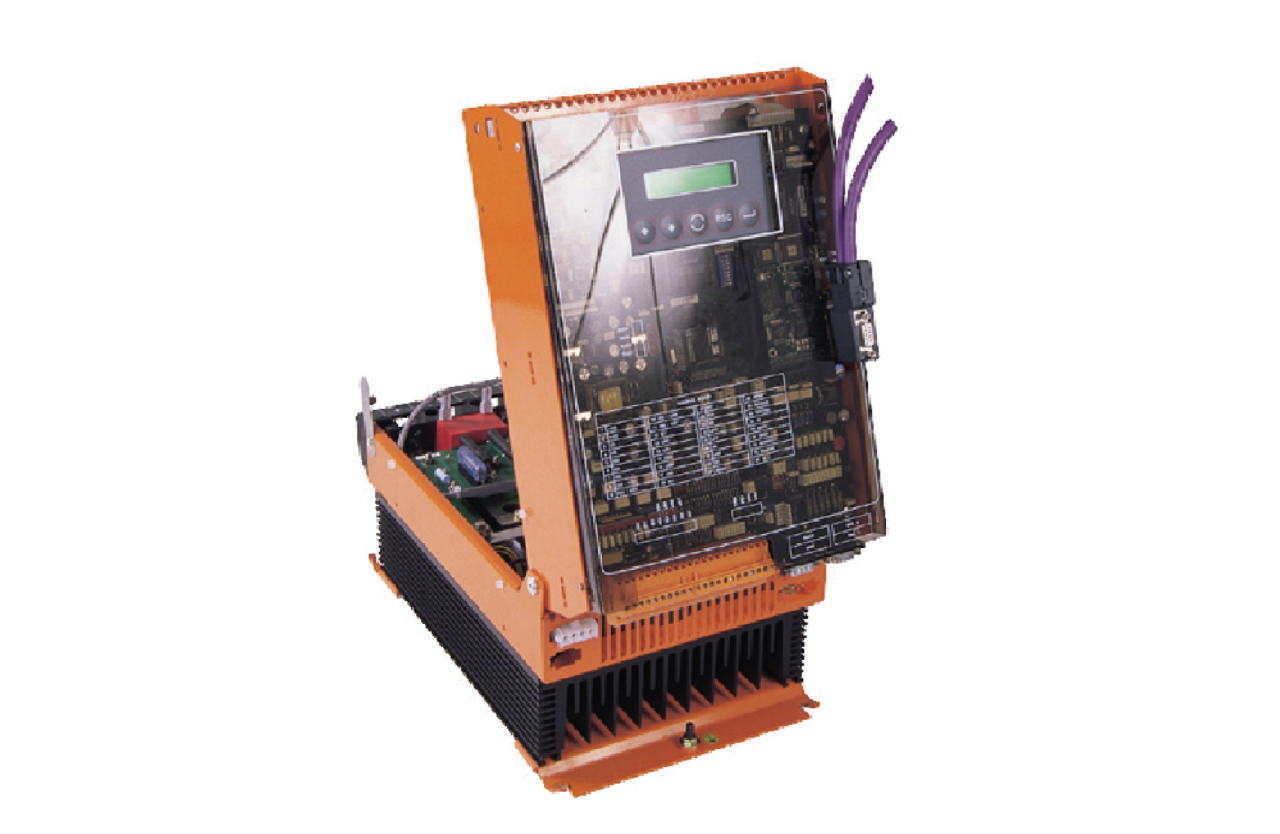

Start Power equipments series SCxQML230 are totally controlled three-phase digital converters operating up to 500 Vac voltage, 360A current, frequency between 45 and 62Hz; they are suitable for speed and motor torque regulation. Sizes with current up to 9000 A are available in different mechanical dimensions.

The functions performed by the microprocessor include the main regulations, interfacing with external devices and diagnostics; all this can be summed up as follows:

  • Reference generator with different combinations
  • PID speed control
  • Predictive current control with calculation of RL motor
  • Auxiliary PID loops and function blocks for free use
  • Two-level protection (alarms and warnings )
  • Keyboard and interface display management on board converter
  • External connection via RS232, RS422 and RS485 serial lines
  • CAN field bus always present, any additional bus via optional module.
